Load 'em Out!

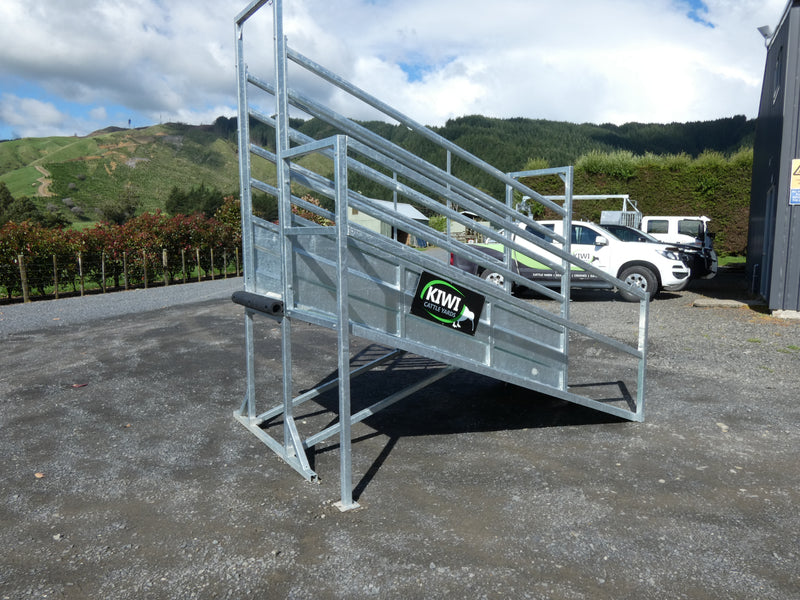

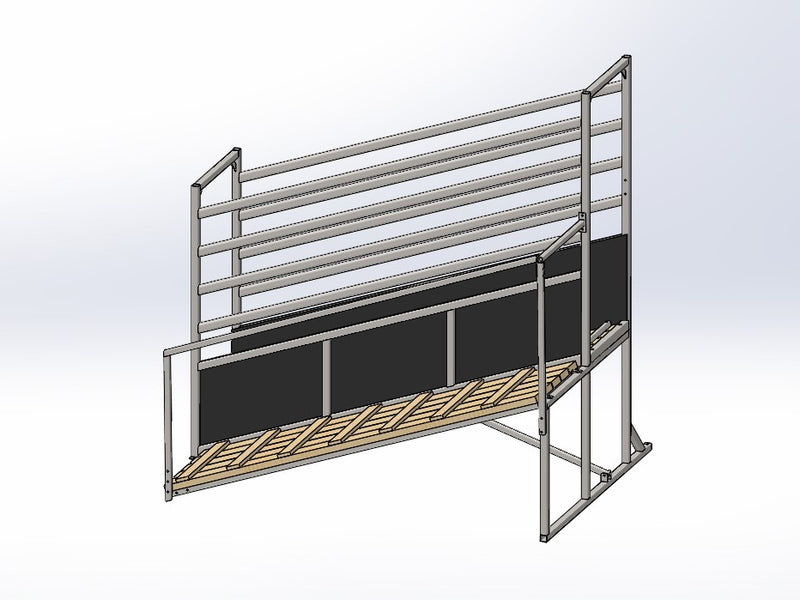

Our Heavy Duty Loading Ramp is designed for serious use by the serious farmer and is available with optional catwalk.
Strong Construction
Heavy duty 70x45mm cattle rail and 50x50mm main frame

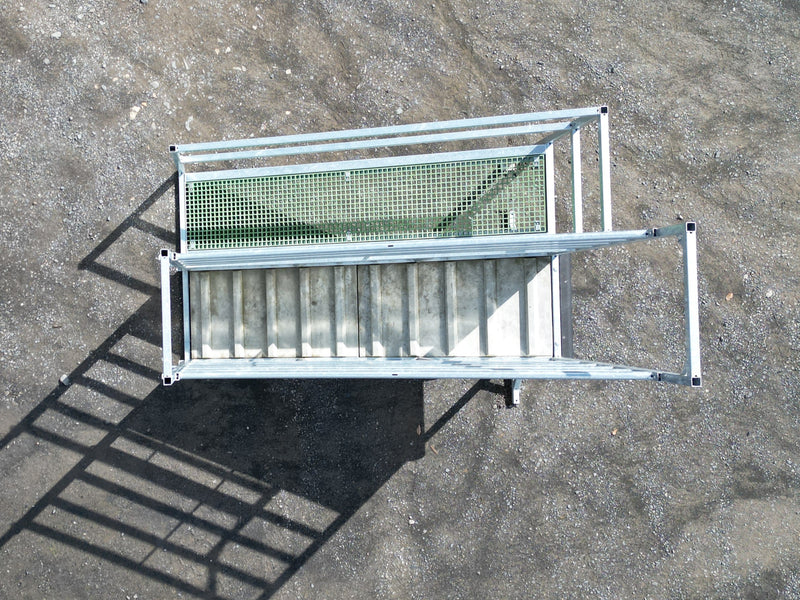

Non slip floor
- 70mm thick reinforced concrete floor
- 40mm high cleats give great grip.

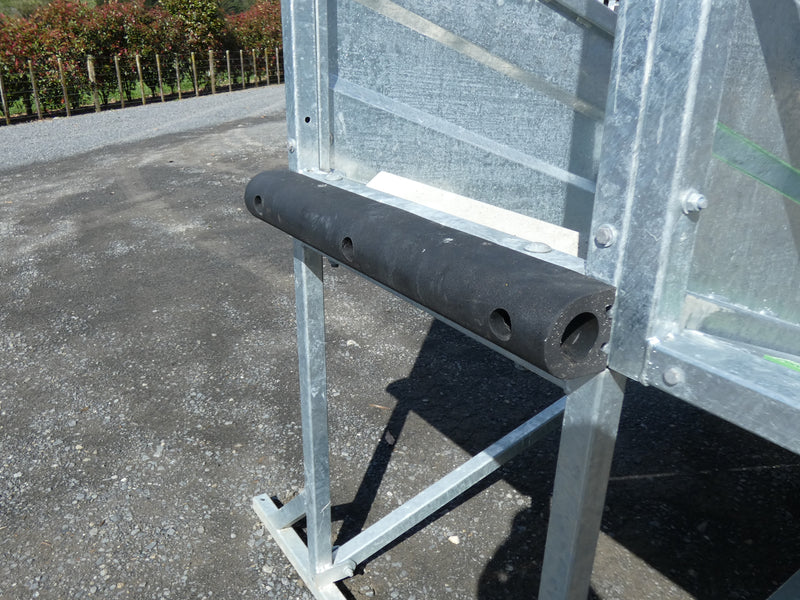

Rubber Buffer
100mm rubber buffer block.

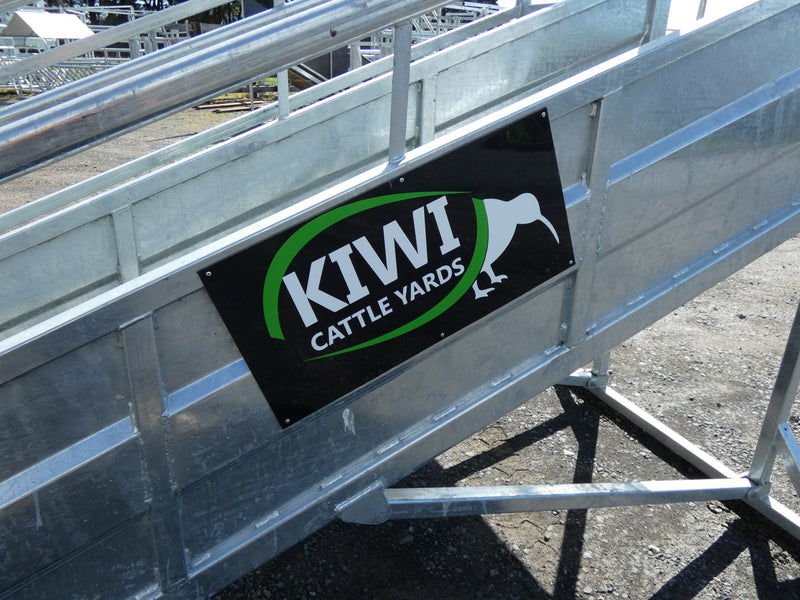

Tough and durable sides
3mm thick galvanized steel sides not only look good but will last the test of time.

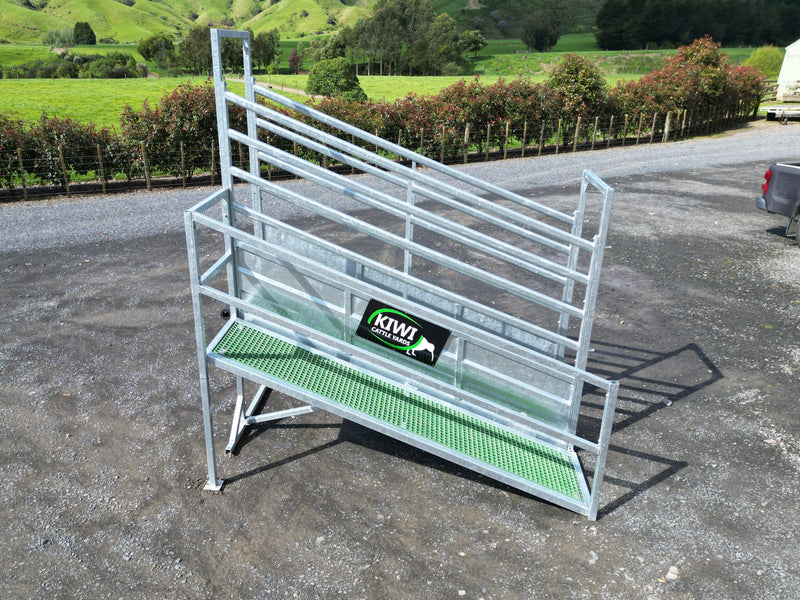

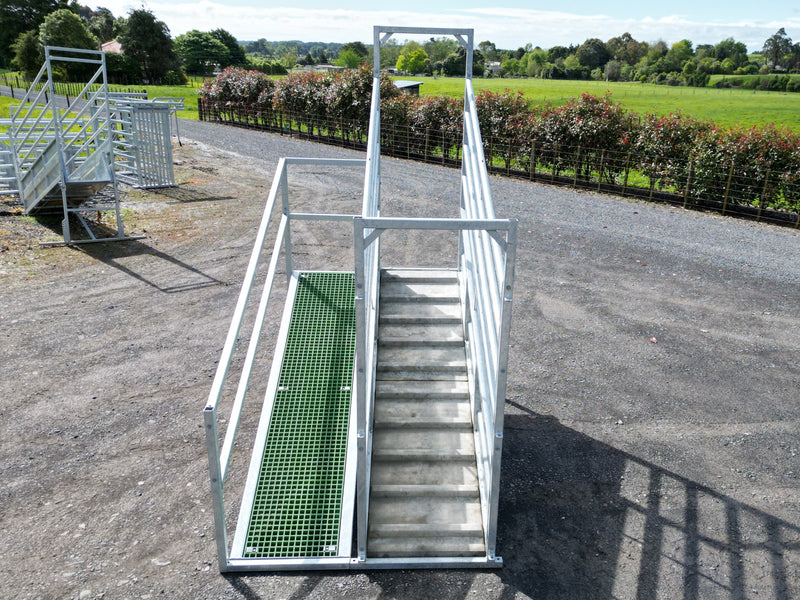

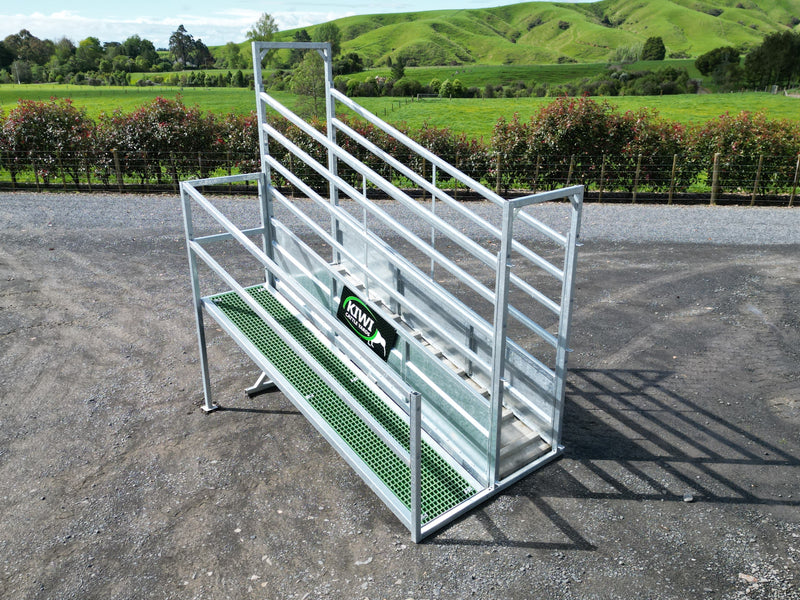

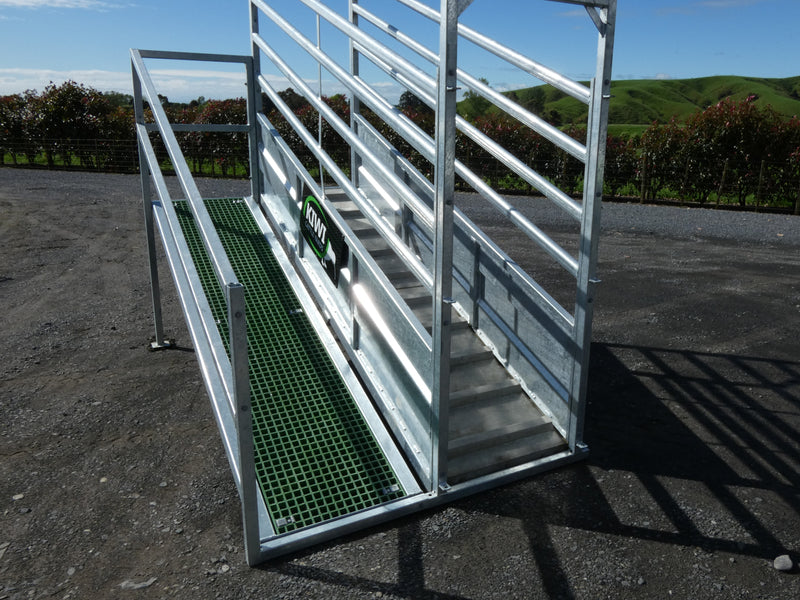

Optional Catwalk
Available with optional 800mm wide catwalk, complete with hand rail. Catwalk can be mounted on either side.
Full loading height
1100mm loading height for full sized stock trucks.
Made to last
Fully hot dipped galvanized frame
Technical Information
Dimensions: Overall 3225mm high x 2100mm wide x 3000mm long
Loading height: 1100mm
Ramp angle: 20 degrees
Weight: 750kg ramp only, 950kg ramp and catwalk
Construction
Hot dip galvanized steel frame, 3mm pressed galvanized steel sides, reinforced concrete floor.
